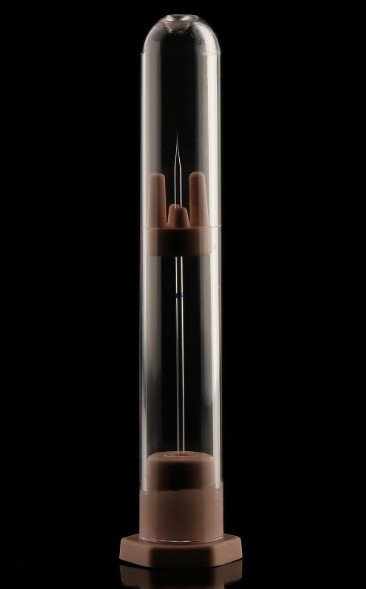

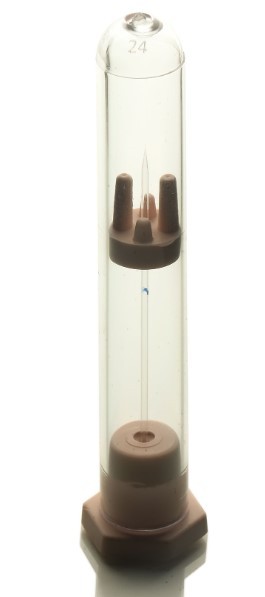

ICSI Pipette
When optimizing the ICSI procedure, it is important to choose exactly the micropipettes that best suit your needs.
Product Details
- It is designed for use in assisted reproductive techniques for Intracytoplasmic Sperm Injection (ICSI). Sperm are aspirated with an ICSI pipette and injected into the oocyte using a micromanipulator.
- It has a pointed tip design that provides controlled entry by minimizing egg degeneration.
- It can be customized according to the tip angle, diameter and elbow length from the tip.
- Thanks to its optimal elbow-tip length, it has control of intra-straw movement. It helps to obtain a large number of sperm at the same time and to apply sperm injection in a controlled manner. It features a unique tapered tip design to minimize oocyte degeneration.
- It provides easy and non-traumatic sperm penetration of oocytes.
- There are 10 packs of ICSI Pipettes in a box.
- Our products have been tried and tested hundreds of times by end users during the optimization process.
| Refer No | Tip Bend Angle (degrees) | Total Length (mm) | Inner Diameter (µm) | Tip Length (µm) |
|---|---|---|---|---|
| EMICSI01 | 30 | 50-65 | 4 | 11 – 13 |
| EMICSI02 | 35 | 50-65 | 4 | 11 – 13 |
| EMICSI03 | 30 | 50-65 | 5 | 11 – 13 |
| EMICSI04 | 30 | 50-65 | 4 – 4,5 | 11 – 13 |
| EMICSI05 | 0 | 50-65 | 4 – 4,5 | 11 – 16 |
| EMICSI06 | 15 | 50-65 | 4 – 4,5 | 11 – 16 |
| EMICSI07 | 20 | 50-65 | 4 – 4,5 | 11 – 16 |
| EMICSI08 | 30 | 50-65 | 4 – 4,5 | 11 – 16 |
| EMICSI09 | 35 | 50-65 | 4 – 4,5 | 11 – 16 |
| EMICSI10 | 25 | 50-65 | 4 – 4,5 | 11 – 16 |
| EMICSI11 | 0 | 50-65 | 4 – 4,5 | 17 – 20 |
| EMICSI12 | 20 | 50-65 | 4 – 4,5 | 17 – 20 |
| EMICSI13 | 15 | 50-65 | 4 – 4,5 | 17 – 20 |
| EMICSI14 | 30 | 50-65 | 4 – 4,5 | 17 – 20 |
| EMICSI15 | 35 | 50-65 | 4 – 4,5 | 17 – 20 |
| EMICSI16 | 25 | 50-65 | 4 – 4,5 | 17 – 20 |
| EMICSI17 | 35 | 50-65 | 5 – 6 | 12 – 15 |
| EMICSI18 | 20 | 50-65 | 5 – 6 | 12 – 15 |
| EMICSI19 | 0 | 50-65 | 5 – 6 | 12 – 15 |
| EMICSI20 | 15 | 50-65 | 5 – 6 | 12 – 15 |
| EMICSI21 | 25 | 50-65 | 5 – 6 | 12 – 15 |
| EMICSI22 | 30 | 50-65 | 4 – 5 | 13 – 16 |
| EMICSI23 | 35 | 50-65 | 4 – 5 | 13 – 16 |
| EMICSI24 | 0 | 50-65 | 4 – 5 | 13 – 16 |
| EMICSI25 | 15 | 50-65 | 4 – 5 | 13 – 16 |
| EMICSI26 | 20 | 50-65 | 4 – 5 | 13 – 16 |
